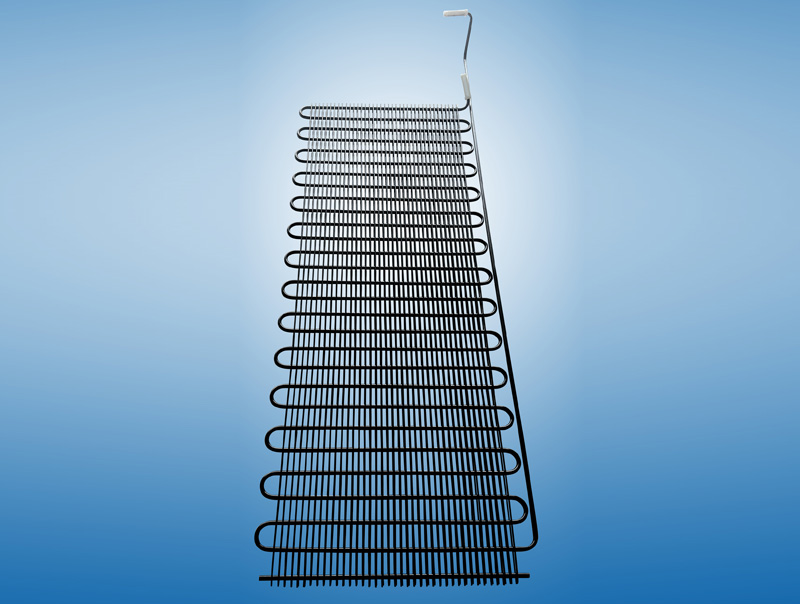

Dimension

Parameters

Pipe material

precise single steel pipe

OD

Φ4.76mm

Wall thickness

0.6mm-0.7mm

Steel wire

Outer diameter

Φ1.2mm-1.6mm

Size

Lmax1600mm-Wmax800mm

Minimum pipe spacing

20mm

Minimum wire spacing

2.5mm

Symmetrical or staggered arrangement

Product features:

◇Black electrophoresis coating with high corrosion resistance

◇With high heat exchange rate meeting the requirements of European A+ and A++ standard

◇Compliant with the requirements of many refrigerants such as R134a and R600a
